The Honda XR650L's CDI unit is well-known as one of the bike's most problematic components. Based on customer feedback and discussion in the XR650 community, here's what every XR650 owner needs to know about this critical system.
What is a CDI
A CDI (Capacitor Discharge Ignition) system is an electronic ignition component that controls when your motorcycle's spark plug fires. Unlike older points-based ignition systems, a CDI uses electronic components to precisely time the ignition spark. The system works by charging a capacitor with high voltage, then rapidly discharging that stored energy through the ignition coil to create a powerful spark at exactly the right moment in the engine's cycle.
In your Honda XR650L, the CDI receives signals from the pickup coil to determine engine speed and crankshaft position. It then calculates the optimal timing and triggers the spark plug to fire. This electronic precision gives you more reliable starting, especially in challenging conditions, and helps maintain consistent performance across different RPM ranges.
Root Cause of CDI Failures
The primary culprit behind XR650L CDI failures is poor solder joint quality from the factory. The solder joints deteriorate over time in the conditions that the CDI unit is exposed to in the battery box.

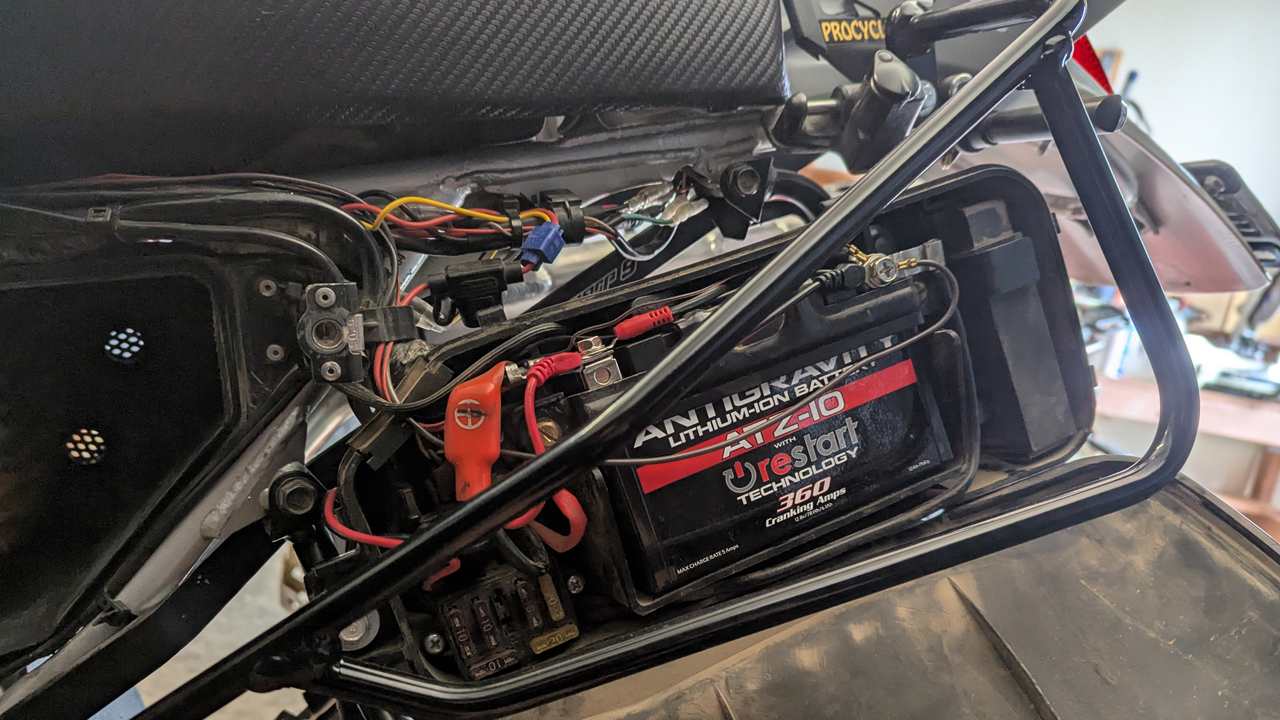

The deterioration is accelerated by several contributing factors. Thermal cycling plays a major role, as repeated heating and cooling causes different materials to expand and contract at different rates, gradually weakening the solder connections. Constant vibration compounds the problem, since the CDI's location in the rear battery box subjects it to relentless jarring from road impacts and engine vibration. Making matters worse, the enclosed battery compartment provides virtually no cooling airflow, which exacerbates heat-related stress on the electronic components and solder joints.
Common Symptoms
XR650 CDI failures typically manifest in several recognizable ways. The most common early symptom is intermittent stalling while riding, with the engine often restarting immediately after cutting out. As the condition worsens, riders may experience complete loss of spark with no warning, leaving them stranded. The engine may cut out suddenly at highway speeds under load, creating dangerous situations. When the unit is partially failed, you may also notice increased difficulty starting the motorcycle. Additionally, backfiring through the exhaust system during restart attempts is another telltale sign of CDI issues.
Diagnostic Test
A simple field test can confirm CDI failure: when the bike won't start or has stalling issues, tap the CDI unit sharply with a screwdriver handle. If the bike suddenly starts or runs better, the CDI has failed solder joints.
Repair & Replacement Options
OEM Honda CDI
The original equipment replacement maintains the same failure-prone design as the original unit and offers no improvement in reliability. While still manufactured and readily available, choosing the OEM replacement essentially guarantees you'll face the same issues again down the road.
High-Quality Aftermarket CDI

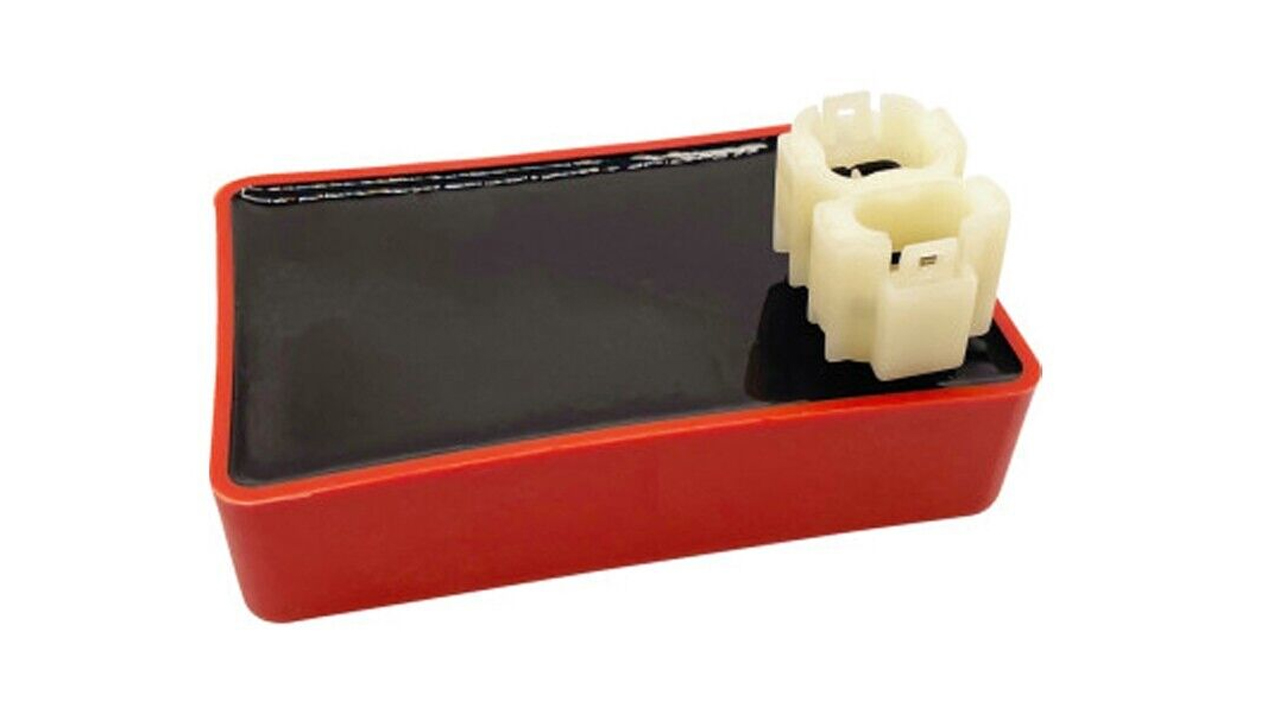

ProCycle offers aftermarket CDI options, including the Hot Shot CDI Box one from Rick's Motorsport Electrics. This aftermarket option costs less than the OEM replacement while offering significant advantages. The Rick's unit retains the original timing curve to maintain proper engine operation but produces a hotter spark that results in better power delivery. Most importantly, it has an excellent reliability track record with none of the solder joint issues that plague the Honda unit. Installation is completely plug-and-play using the stock connectors, making it an easy upgrade.
DIY Repair
Many XR650L owners have successfully repaired their CDI units by resoldering the circuit board connections. The process generally involves cutting open the sealed CDI case, inspecting all solder joints under magnification, resoldering all suspect connections with quality materials and technique, then resealing the unit with silicone compound. While the specific repair process is beyond the scope of this article, it's a viable option for mechanically inclined owners looking to save money.
Conclusion
The XR650L CDI issue is a known design flaw affecting bikes from 1993 through current production. While Honda has never officially addressed the problem, the aftermarket has provided reliable solutions. For maximum reliability, owners should consider upgrading to an aftermarket CDI system like the Rick's unit, which not only solves the reliability issue but also provides performance benefits.
The key is being proactive rather than reactive. Don't wait for complete failure when riding in remote areas where a breakdown could be dangerous or costly. Either repair the existing unit preemptively, upgrade to a reliable aftermarket solution, or at minimum carry a quality spare CDI unit. Understanding this common failure point and planning accordingly will keep your XR650L running reliably for years to come.
